Troughs and Drinkers

[vc_row height=”small”][vc_column][us_post_title align=”center” css=”%7B%22default%22%3A%7B%22margin-bottom%22%3A0%7D%7D” migration_add_content=”1″][us_separator size=”small” show_line=”1″][vc_column_text]

Troughs and Drinkers for free stalls

Animals must first have access to fresh, clean and adequate water, so drinkers and troughs that are not easily contaminated and can be cleaned quickly are very important!   Cattle can drink up to 150 liters of water on hot summer days. Cows can drink an average of 5-8 liters of water per minute and when they are too dehydrated, they can drink 25 liters of water per minute[/vc_column_text][vc_row_inner columns=”4″][vc_column_inner width=”1/4″][us_iconbox icon=”far|cow” title=”Cattle”][/us_iconbox][/vc_column_inner][vc_column_inner width=”1/4″][us_iconbox icon=”far|sheep” title=”Sheep”][/us_iconbox][/vc_column_inner][vc_column_inner width=”1/4″][us_iconbox icon=”far|horse” title=”Horse”][/us_iconbox][/vc_column_inner][vc_column_inner width=”1/4″][us_iconbox icon=”far|dog” title=”Dog”][/us_iconbox][/vc_column_inner][/vc_row_inner][vc_column_text]

Troughs and Drinkers

[/vc_column_text][vc_row_inner][vc_column_inner][/vc_column_inner][/vc_row_inner][vc_row_inner columns=”custom” columns_layout=”6fr 3fr 3fr”][vc_column_inner][us_separator][vc_column_text]

Stainless Troughs and Drinkers

[/vc_column_text][us_iconbox icon=”fas|cow” img=”7536″ title=”Troughs and Drinkers” title_tag=”h5″ color=”custom”]For animals[/us_iconbox][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

• Drainage: Drained / Tilt
• With Water Supply Valve / Float
• Heated : Outside / inside
• Material: Chrome / Stainless / Galvanized
• Mounting type : Legs / wall / hanging.
• Place of use:  Group / Individual / Free

[/vc_column_text][us_separator][/vc_column_inner][vc_column_inner width=”1/2″][us_image image=”5071″ size=”us_600_0″ align=”center” style=”shadow-1″ has_ratio=”1″ ratio=”16×9″ css=”%7B%22default%22%3A%7B%22margin-top%22%3A%2220px%22%2C%22border-top-width%22%3A%2220px%22%7D%7D”][us_separator][us_flipbox front_title=”Easy cleaning” front_bgimage=”5088″ front_bgimage_size=”full” back_title=”Tip over” back_bgimage=”5091″ back_bgimage_size=”full”][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

Valve type Drinkers

[/vc_column_text][vc_column_text]Valve type drinkers with valves that save space in the barn; It is a hybrid of large volume troughs and stainless steel drinkers. Due to high water supply and the special trough construction lengthy time-consuming cleaning of the troughs can be reduced to a minimum. As the water container basin depth is very low, the fodder pieces can not settle and the trough and the basin remains clean. Always Provides Clean and Hygienic Water Advantage[/vc_column_text][/vc_column][/vc_row][vc_row columns=”custom” columns_layout=”6fr 3fr 3fr 6fr”][vc_column][vc_column_text]

VDT 500 -520 Valve Drinkers

[/vc_column_text][vc_column_text]Suitable for use in free stall barns and paddocks, always fresh, clean water advantage, and CHROME trough water flow rate 30L / Min..[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_column_text]

• Model 500 Sufficient for 15-20 animals with a single drinking point
• Model 520 Double Sided, two animals can drink water at the same time. Sufficient for 30-40 animals

[/vc_column_text][/vc_column][vc_column width=”1/2″][us_image image=”22248″][/vc_column][vc_column][vc_tta_tabs][vc_tta_section title=”Ürün Detay Bilgileri” indents=”none” icon=”fas|cow” el_id=”1610825190817-a23e322f-9623″][vc_column_text]

• Self cleaning, stainless chrome steel drinker.
• Suitable for use in free stall barns and paddocks
• Valve type water supply for cows and fattening
• Sufficient for 15-20 animals with a single smoking place
• Always fresh and clean water flow 30L / Min.
• Always Clean and Hygienic Water Advantage.
• Using a heating element, the valve can be heated.
• Wall mounted or on legs.

[/vc_column_text][vc_column_text][/vc_column_text][/vc_tta_section][vc_tta_section title=”Ölçüler” icon=”fas|star” el_id=”1610826338077-6f4e4dce-bb23″][vc_column_text][/vc_column_text][/vc_tta_section][vc_tta_section title=”İndirmeler” icon=”fas|download” el_id=”1610828848282-016ce910-e578″][us_btn label=”Genel Katalog” link_type=”none” icon=”fas|angle-right”][us_btn label=”Montaj yönergeleri” link_type=”none” icon=”fas|angle-right”][us_btn label=”Ürün Teknik Bilgileri” link_type=”none” icon=”fas|angle-right”][us_iconbox title=”Diğer”][/us_iconbox][/vc_tta_section][/vc_tta_tabs][/vc_column][/vc_row][vc_row columns=”custom” columns_layout=”6fr 3fr 3fr 6fr”][vc_column][vc_column_text]

FVDT 600 -620 Float valve Drinkers

[/vc_column_text][vc_column_text]Ideal for animals with a suction nose ring. Water basin with float suitable for use in free stalls and paddocks. Always Clean and fresh water Advantage. It has single and double sided models. water flow 30L / Min.[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_column_text]

• Model 600 Sufficient for 15-20 animals with a single smoking point.
• Model 620 Double Sided, two animals can drink water at the same time. It is enough for 30-40 animals

[/vc_column_text][/vc_column][vc_column width=”1/2″][us_image image=”22249″ size=”medium”][/vc_column][vc_column][vc_tta_tabs][vc_tta_section title=”Ürün Detay Bilgileri” indents=”none” icon=”fas|cow” el_id=”1610831027017-67a9b2a6-ab35″][vc_column_text]

• Self cleaning, stainless chrome steel drinker.
• Suitable for use in free stall barns and paddocks
• Water basin with float valve
• Ideal for animals with a suction ring on their nose.
• Water flow 40 L / Min for 15-20 animals with one drinking point.
• Heating element or valve heating can be installed.
• Always Clean and Hygienic Water Advantage.
• Use on wall or feet

[/vc_column_text][vc_column_text][/vc_column_text][/vc_tta_section][vc_tta_section title=”Ölçüler” icon=”fas|star” el_id=”1610831027131-779c0772-67f6″][vc_column_text][/vc_column_text][/vc_tta_section][vc_tta_section title=”İndirmeler” icon=”fas|download” el_id=”1610831027254-4d5b936e-0180″][us_btn label=”Genel Katalog” link_type=”none” icon=”fas|angle-right”][us_btn label=”Montaj yönergeleri” link_type=”none” icon=”fas|angle-right”][us_btn label=”Ürün Teknik Bilgileri” link_type=”none” icon=”fas|angle-right”][us_iconbox title=”Diğer”][/us_iconbox][/vc_tta_section][/vc_tta_tabs][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

Tip-Over / Drainage Troughs

[/vc_column_text][/vc_column][/vc_row][vc_row columns=”custom” columns_layout=”6fr 3fr 3fr 6fr”][vc_column][vc_column_text]

Quick Drainage Troughs

[/vc_column_text][vc_column_text]Quick-Drain (Drain) Conical curved chrome steel drinking trough (no-tip-over type) No tipping-over – direct drainage! Water is directly channeled downwards through drainage tube! No ice in front of the trough in winter season! Anti-spillage rim – minimizes wastage[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_column_text]Available different lengths and capacity

[/vc_column_text][/vc_column][vc_column width=”1/2″][us_image image=”22250″][/vc_column][vc_column][vc_tta_tabs][vc_tta_section title=”Ürün Detay Bilgileri” indents=”none” icon=”fas|cow” el_id=”1611337044801-dfc4c662-b3fd”][vc_column_text]

• Quick Draining conical inclined chrome steel drinking trough  (no tip-over)
• Dimensions:  140cm = 100Liters / 190cm = 130Liters / 230cm = 160Liters / 285cm = 200Liters / 420cm = 325Liters
• Anti-spill rim – minimizes wastage
• With MASTERFLOW float valve, 40 L / minute water flow rate = flow (11 gallon / minute),
• ¾ “Male connection float valve cover on the front side can be turned upwards without using tools!
• Large hole for quick drainage; The drain plug is easily accessible above the water surface
• Frost protection heating panel can be installed
• Wall mounted or on legs

[/vc_column_text][vc_column_text][/vc_column_text][/vc_tta_section][vc_tta_section title=”Ölçüler” icon=”fas|star” el_id=”1611337045194-cdfd4d31-4874″][vc_column_text][/vc_column_text][/vc_tta_section][vc_tta_section title=”İndirmeler” icon=”fas|download” el_id=”1611337045388-a6c0a2a2-7aa9″][us_btn label=”Genel Katalog” link_type=”none” icon=”fas|angle-right”][us_btn label=”Montaj yönergeleri” link_type=”none” icon=”fas|angle-right”][us_btn label=”Ürün Teknik Bilgileri” link_type=”none” icon=”fas|angle-right”][us_iconbox title=”Aksesuarlar”]

• Bacak takımları (4 parça, Sipariş Ref. 131.6030) mevcuttur, suluk yüksekliği ayarlanabilir!
• İlave Alçak basınçlı şamandıra valfi nin (Ref. 131.0738) montajı mümkündür: Örneğin, süt soğutma sisteminden ısınmış su kullanmak için (mümkün değil) ancak Devre tüpü Modeli 6064 takıldığında!), Veya bir ek MAXIFLOW şamandıra valfi (Sipariş Ref. 131.0700).
• Ön taraftaki bağlantıları örtmek için ısırık koruma plakası (Sipariş Ref. 131.6085) Tüm drenaj tip suluklara uygundur, donma korumasın ısırmayı önler Kablolar, bağlantı alanının kolayca yalıtılmasını sağlar

[/us_iconbox][/vc_tta_section][/vc_tta_tabs][/vc_column][/vc_row][vc_row columns=”custom” columns_layout=”6fr 3fr 3fr 6fr”][vc_column][vc_column_text]

Volume Troughs

[/vc_column_text][vc_column_text]Voluminous trough with deeper basin stainless steel for wall fixation Ideal to water the animals with warmed-up water from milk cooling system. Capacity can be increased to  720 L by adding modular connection set.[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_column_text]Available different lengths and capacity

[/vc_column_text][/vc_column][vc_column width=”1/2″][us_image image=”22252″][/vc_column][vc_column][vc_tta_tabs][vc_tta_section title=”Ürün Detay Bilgileri” indents=”none” icon=”fas|cow” el_id=”1611749651649-79da934f-31ba”][vc_column_text]

• Quick Draining conical inclined chrome steel drinking trough (no-tip-Over type)
• Dimensions:  140cm = 100Liters / 190cm = 130Liters / 230cm = 160Liters / 285cm = 200Liters / 420cm = 325Liters
• Anti-spill rim – minimizes wastage
• With MASTERFLOW float valve, 40 L / minute water flow rate = flow (11 gallon / minute),
• ¾ “Male connection float valve cover on the front side can be turned upwards without using tools!
• Large hole for fast drainage; The drain plug is easily accessible above the water surface
• Frost protection heating panel can be installed
• Wall mounted or on legs

[/vc_column_text][vc_column_text][/vc_column_text][/vc_tta_section][vc_tta_section title=”Ölçüler” icon=”fas|star” el_id=”1611749652017-fbe33878-c3b9″][vc_column_text][/vc_column_text][/vc_tta_section][vc_tta_section title=”İndirmeler” icon=”fas|download” el_id=”1611749652250-65cc0053-f122″][us_btn label=”Genel Katalog” link_type=”none” icon=”fas|angle-right”][us_btn label=”Montaj yönergeleri” link_type=”none” icon=”fas|angle-right”][us_btn label=”Ürün Teknik Bilgileri” link_type=”none” icon=”fas|angle-right”][us_iconbox title=”Aksesuarlar”]

• Bacak takımları (4 parça, Sipariş Ref. 131.6030) mevcuttur, suluk yüksekliği ayarlanabilir!
• İlave Alçak basınçlı şamandıra valfi nın (Ord. Ref. 131.0738) montajı mümkündür Veya:
• Doğrudan su bağlantısı için MASTERFLOW şamandıra valfi (Sipariş Ref. 131.0723).
• Ön taraftaki bağlantıları örtmek için ısırık koruma plakası (Sipariş Ref. 131.6085) Tüm drenaj tip suluklara uygundur, donma korumasın ısırmayı önler Kablolar, bağlantı alanının kolayca yalıtılmasını sağlar.

[/us_iconbox][/vc_tta_section][/vc_tta_tabs][/vc_column][/vc_row][vc_row columns=”custom” columns_layout=”6fr 3fr 3fr 6fr”][vc_column][vc_column_text]

Flat Tip-Over Troughs MF

[/vc_column_text][vc_column_text]Tilting mechanism for fast drainage and easy cleaning. Flat chrome steel water-saving draughts. Flat tip-over troughs are simply cleaned by tipping them over. In order to provide a sufficient amount of water to the animals, these troughs are equipped with the high-capacity MASTERFLOW float-valve, which enables a water supply of up to 40 liters per minute. Float Valve providing the optimum drinking height and high flow water flow, comfortable and easy access to water with water level.[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_column_text]Available different lengths and capacity

[/vc_column_text][/vc_column][vc_column width=”1/2″][us_image image=”22254″][/vc_column][vc_column][vc_tta_tabs][vc_tta_section title=”Ürün Detay Bilgileri” indents=”none” icon=”fas|cow” el_id=”1611751212807-0de70af4-1f33″][vc_column_text]

• Tilting mechanism for fast drainage and easy cleaning.
• Straight trough chrome steel drinker
• Lengths 100 cm, 150 cm, 200 cm, 300 cm.
• Provides 40 l / min water flow (11 gallon/min) water flow rate with MASTERFLOW Float Valve.
• Float Valve type float provides 25L / s water flow rate.
• The float valve cover is opened by lifting upwards without using any tools!
  Use on wall or feet.
• Water saving water trough:
  water saving compared to other drinkers per drinker (normal tipped water troughs with 200 L water content) 25,000 L (6,600 US gallons) per year (considering cleaning every 2 days),
• Design suitable for animals, without sharp and prominent edges or corners. Comfortable and easy access to water with optimum drinking height and water level
• Little slurry is produced!

[/vc_column_text][vc_column_text][/vc_column_text][/vc_tta_section][vc_tta_section title=”Ölçüler” icon=”fas|star” el_id=”1611751213057-2bdc4b47-221b”][vc_column_text][/vc_column_text][/vc_tta_section][vc_tta_section title=”İndirmeler” icon=”fas|download” el_id=”1611751213229-0b3538e0-1c06″][us_btn label=”Genel Katalog” link_type=”none” icon=”fas|angle-right”][us_btn label=”Montaj yönergeleri” link_type=”none” icon=”fas|angle-right”][us_btn label=”Ürün Teknik Bilgileri” link_type=”none” icon=”fas|angle-right”][us_iconbox title=”Aksesuarlar”]

• Duvar ve zemin sabitleme için galvanizli sabitleme çerçevesi
• Isırık koruma paneli, donmayı önleme kabloları tekne suluk üzerindeki için monte edildiğinde kablo ve donanımı korur:
• Dahili rijit ¾ “ön erkek su bağlantısı, esnek bağlantı hattı gerekli değildir.
• Sağ veya sol taraftan valfin yerini değiştirerek su bağlantısı mümkündür. Aşağıdan su hattı gelirse (Sipariş Ref. 131.0579)• su hattı yan taraftan bağlanırsa (Sipariş Ref. 131.0580).

[/us_iconbox][/vc_tta_section][/vc_tta_tabs][/vc_column][/vc_row][vc_row columns=”custom” columns_layout=”6fr 3fr 3fr 6fr”][vc_column][vc_column_text]

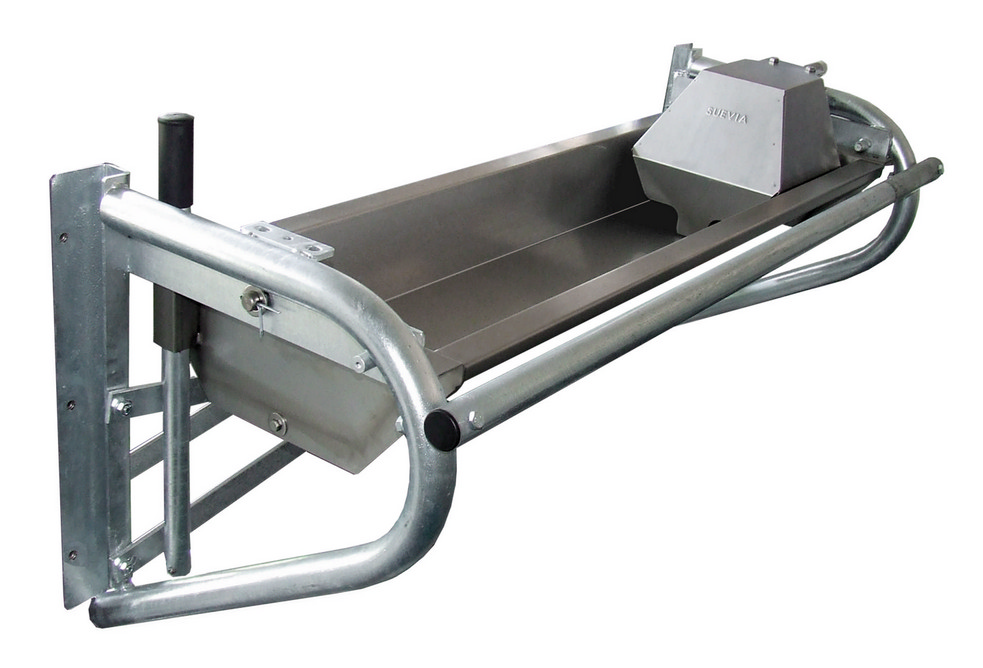

Tip-Over Troughs

[/vc_column_text][vc_column_text]Tilting mechanism for fast drainage and easy cleaning. Flat hull chrome steel  basin. Design suitable for animals, without sharp and prominent edges or corners. Comfortable and easy access to water with optimum drinking height and water level.[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_column_text]Available different lengths and capacity

[/vc_column_text][/vc_column][vc_column width=”1/2″][us_image image=”22253″][/vc_column][vc_column][vc_tta_tabs][vc_tta_section title=”Ürün Detay Bilgileri” indents=”none” icon=”fas|cow” el_id=”1611751476414-f58cef6c-485c”][vc_column_text]

• Tilting mechanism for fast drainage and easy cleaning.
• During the unloading process, the trough makes the tipping movement.
• Curved Chrome water basin. 100 cm, 150 cm, 200 cm
• High performance float valve, ½ “male connection,
• Water flow up to 25 l / min (7 gallons / min).
• Float valve cover with easy opening and closing and fixing mechanism
• Easy access to the drinking water surface with ideal drinker height.
• Can be fixed to the wall and the floor with a galvanized frame
• It should be carried out at the connection point to the water line by means of a flexible pipe

[/vc_column_text][vc_column_text][/vc_column_text][/vc_tta_section][vc_tta_section title=”Ölçüler” icon=”fas|star” el_id=”1611751476710-ad64b067-ee50″][vc_column_text][/vc_column_text][/vc_tta_section][vc_tta_section title=”İndirmeler” icon=”fas|download” el_id=”1611751476908-cd6f40d9-b622″][us_btn label=”Genel Katalog” link_type=”none” icon=”fas|angle-right”][us_btn label=”Montaj yönergeleri” link_type=”none” icon=”fas|angle-right”][us_btn label=”Ürün Teknik Bilgileri” link_type=”none” icon=”fas|angle-right”][us_iconbox title=”Aksesuarlar”]

• Duvar ve zemin sabitleme için galvanizli sabitleme çerçevesi
• Isırık koruma paneli, donmayı önleme kabloları tekne suluk üzerindeki için monte edildiğinde kablo ve donanımı korur:
• Dahili rijit ¾ “ön erkek su bağlantısı, esnek bağlantı hattı gerekli değildir.
• Sağ veya sol taraftan valfin yerini değiştirerek su bağlantısı mümkündür. Aşağıdan su hattı gelirse (Sipariş Ref. 131.0579)• su hattı yan taraftan bağlanırsa (Sipariş Ref. 131.0580).

[/us_iconbox][/vc_tta_section][/vc_tta_tabs][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

High capacity drinkers for dairy cows

[/vc_column_text][vc_column_text]

Allow animals to access water at least 2 times a day.

high-capacity troughs. These will give the animals the opportunity to drink water quickly and in large quantities. In many stalls a combination of space-saving valve troughs and large, voluminous troughs is very reasonable and recommended. Prerequisite of a high milk production level is an optimal water supply system! Dairy cows have a very pronounced sense of taste! Especially among dairy cows, Dairy cows require 4- 5 liters of water to produce 1 liter of milk. They can cover a part of their demand by eating fodder. On hot summer days animals may drink up to additional 150 liters of water.

Due to high water supply and the special trough construction lengthy time-consuming cleaning of the troughs can be reduced to a minimum. As the water depth is very low, the fodder pieces can not settle and the trough is therefore self-cleaning. Of course these troughs can also be frost-protected!

You will find a detailed description of the different frost protection possibilities for each of the Troughs and Drinkers in the respective product descriptions.  Devir-Daim Sistemi, Boru Isıtma, Su Isıtıcıları ve Suluk Isıtıcı Panelleri   ıslatmamalıdır[/vc_column_text][us_separator][vc_column_text]

Quick drainage and Tip Over Troughs

Quick drainage troughs, as well as Thermo troughs have a conical and inclined floor and are provided with a large diameter drainage hole. In order to empty or clean the trough the drainage plug is removed: water is directly channeled downwards through drainage tube in a quick way! No ice in front of the trough in winter season!
The flat tip over troughs drinkers are simply cleaned by tipping them over. In order to provide a sufficient amount of water to the animals, these troughs are equipped with the high-capacity MASTERFLOW float-valve, which enables a water supply of up to 40 liters per minute. They are connected to a fixed water pipe.[/vc_column_text][vc_row_inner][vc_column_inner][us_cta title=”” btn_label=”” btn_link=”url:https%3A%2F%2Fkraiburg.com.tr%2Ftr%2Fbuzagi-kulubesi%2F|title:%C3%96rt%C3%BCl%C3%BC%20alanlar%20i%C3%A7in%20buza%C4%9F%C4%B1%20kul%C3%BCbesi” btn_style=”8″ btn_icon=”fas|angle-left” second_button=”1″ btn2_label=”” btn2_link=”title:Kul%C3%BCbe%20Aksuarlar%C4%B1″ btn2_style=”8″ btn2_icon=”fal|cow”][/us_cta][/vc_column_inner][/vc_row_inner][us_separator size=”small”][/vc_column][/vc_row][vc_row][vc_column][vc_tta_tour][vc_tta_section title=”Section 1″ el_id=”1611767183888-f815bb05-1c55″][vc_column_text]Your water supply equipment will require technology to cover this great demand! We therefore recommend the installation of one drinking trough for up to 15 – 20 animals in free stalls for dairy cows. The distance between each of the troughs should not be more than 15 meters. Please ensure that you allow the animals in each group to have access to at least 2 drinking troughs.[/vc_column_text][/vc_tta_section][vc_tta_section title=”Section 2″ el_id=”1611767183985-36c7a30a-2ce2″][vc_column_text]Diğer paslanmaz suluk ve yalaklar ile bireysel ve otomatik hayvan sulukları, Su tekneleri, donmaz suluklar ve suluk ısıtıcıları için bizi arayınız Buzağı yatağı, Kum yataklık, inek yatağı, hayvan yatağı, doğumhane yatağı, besi yatağı, genç hayvan yatağı, padok yatağı, inek yatak fiyatı, hayvan yatakları, hayvan yatak fiyatları, inek yatak çeşitleri, yumuşak inek yatağı, kauçuk inek yatağı, kauçuk hayvan yatağı, inek döşeği, süngerli inek yatağı çeşit ve modelleri için bizi arayınız.[/vc_column_text][/vc_tta_section][/vc_tta_tour][/vc_column][/vc_row]
